Prime-Line Steel Indoor And Outdoor Mortise Lock And Keeper

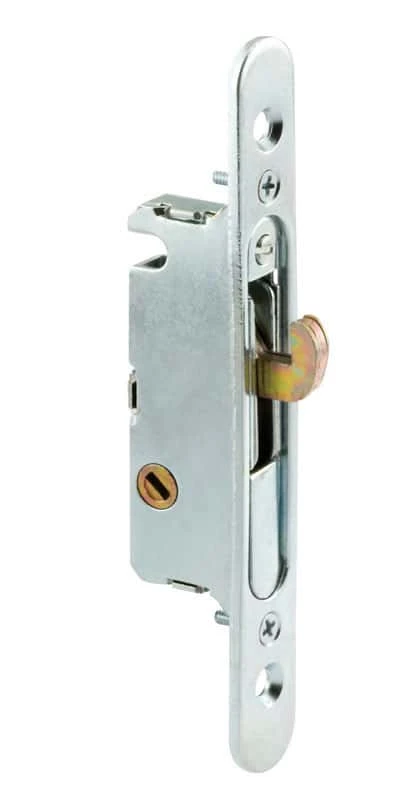

This mortise lock is constructed of steel components with rounded faceplate ends. It features an adjustable, spring-loaded hook latch projection and an adaptor faceplate which allows for use on wood and vinyl patio doors. This lock works with mortise style, surface-mounted patio door handle sets with 45 degree angled keyway positions when in the locked position. The mounting hole centers of this lock measure 3-11/16 in. and 4-5/8 in. from center to center, and the rear housing corners are square. This mortise lock is used by many patio door manufacturers. Selection Tip: To ensure the perfect match is selected prior to purchasing, the lock will need to be removed to compare the following 4 features (besides the width of housing): 1) The distance of the mounting holes measured from center to center, 2) The faceplate ends; rounded or square, 3) The position of the slotted keyway when in the locked position; at 45 degree angle or vertical, and 4) The shape of the housing corners at the rear; square or slanted. Installation Tip: Watch the manufacturer’s How-To Video that is linked to this item page..

All components of these mortise locks are constructed of steel

These locks come in a corrosion resistant, zinc plated finish

Designed for use with patio sliding doors, and can be used on units constructed of vinyl and wood

Features an adjustable faceplate to allow for latch projection adjustment

Easy to install with only a few simple tools

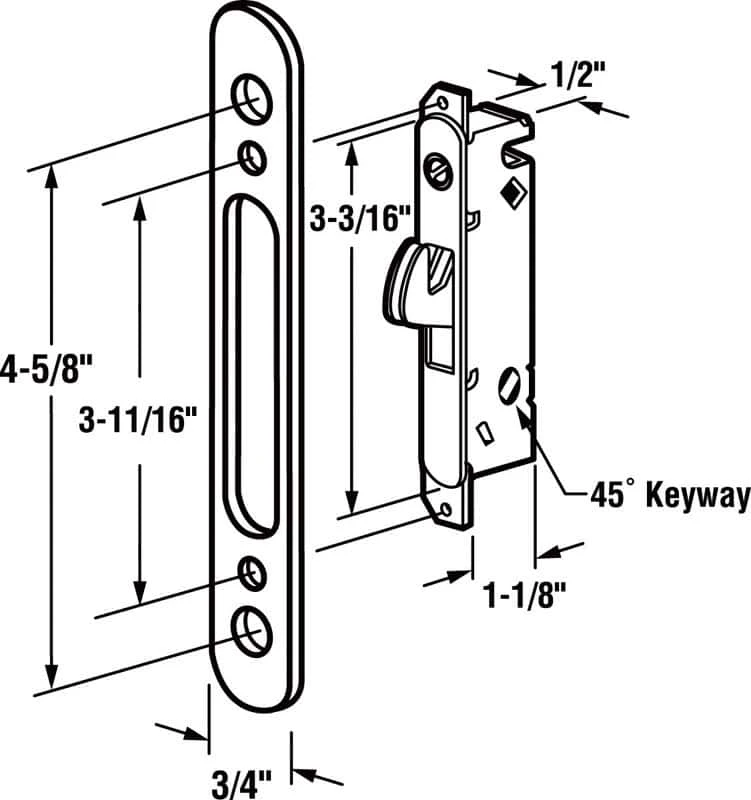

For further dimensional and specification information, please see the line drawing

Used by a variety of patio door manufactures

For further dimensional information, please see the line drawing
